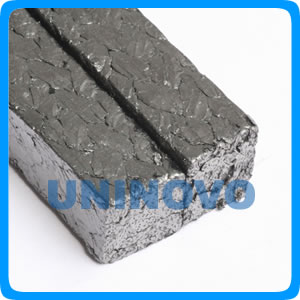

Reinforced graphite braided packing
Item: UP204B
Expanded Graphite Braided Packing Reinforced by ss316 Stainless Steel Wire
1)Gland Packing Material
2)Made from Expanded Graphite yarn
3)Resists many strong chemicals,reduces shaft wear, requires less run-in.
4)Provides a superior leakage and emissions control of Die-formed Graphite Rings.
APPLICATION:
It is a multi-service packing capable of a wide variety of uses throughout a plant. It can be used in valves, pumps, expansion joints, mixers and agitators in high-pressure, high-temperature hostile environments of hydrocarbon processing, pulp and paper, power stations, refineries and industries where effective sealing is vital.
Precaution: in oxidizing environment.
Recommendation:
Use preferably with UP203 high carbon fiber anti-extrusion packing rings.
PARAMETER:
|
|
Rotating |
Reciprocating |
Valves |
|
Pressure |
20 Bar |
100Bar |
300Bar- |
|
Shaft speed |
20m/s |
2m/s |
2m/s |
|
Density |
1.0~1.3g/cm3 (+3% -- UP2121) |
|
Temperature |
|
|
PH |
0~14 |
Packaging:
In coils of 5 kg, 10kg, 25kg, other packages on request. Supply OEM products.
|
